TNC Coaxial Connectors

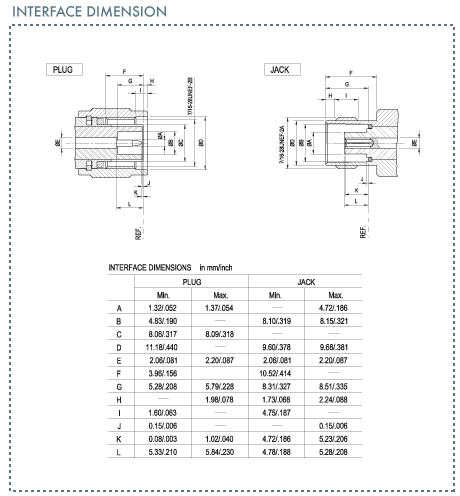

Technical Specifications | Interface Dimensions | Semi Rigid Cables | Flexible Cables
Receptacles 50 Ohm | Adaptors | Download TNC Coaxial Connector Catalog

Since TNC Series Connectors have a screw type design using the BNC Series combining system,
they can be used appropriately for mechanics with strong vibrations.

Frequencies up to 11GHz can be used for 50Ohm connectors while 75 Ohm connectors can be used
up to 1 GHz.

Cable connectors are divided by clamp or crimp according to their usage and every compatible
75 Ohm and 50 Ohm TNC can be used.

Standards:
MIL-C-39012

RF Coaxial Connectors - TNC Coaxial Connectors


Technical Characteristics



Requirement

MIL-C-39012 Paragraph

Specification

ELECTRICAL DATA

Impedance

50 Ohm, 75 Ohm

Frequency Range

DC to 4GHz, DC 1GHz

Contact Current

DC 3.5A max.

Voltage Rating

250V rms

Contact Resistance

3-16

Center Contacts: 2.0m Ohm
Outer Contacts: 0.2m Ohm

Insulation Resistance

3-11

5000M Ohm min

Insertion Loss

3-27

0.18 dB max at 9GHz

VSWR

3-14

≤ 1.15

MECHANICAL DATA

Coupling Nut Torque

20Ncm - 170Ncm

Proof Torque



N/A

Life

3-15

500 matings

Contact Captivation

3-14

≥27N

ENVIRONMENTAL DATA

Temperature Range



-65C ~ +125C

Corrosion Resistance

3-13

MIL-STD-202, Method
101, Condition B

Moisture Resistance

3-21

MIL -STD-202, Method 106

Thermal Shock

3-20

MIL -STD-202, Method 107
Condition B

Shock

3-18

MIL -STD-202, Method 204
Condition B

Vibration

3-19

MIL -STD-202, Method 213
Condition G

MATERIALS

Bodies and Male Contacts



Brass

Female Contacts

Berylium Copper

Insulators

PTFE Teflon

Gasket



Silicone Rubber

PLATINGS

Bodies, Coupling Nuts

Nickel Plated

Center Contacts

Gold Plated


Semi-Rigid Cables

TNC Coaxial Connectors - Semi-Rigid Cable, Straight Plug

For Cable Solder

Part Number

1T-101

Cable Group

U85

Dim,A

2.25(.089)



TNC Coaxial Connectors - Semi-Rigid Cable, Straight Plug

For Cable Crimp

Part Number

1T-102

Cable Group

U141

Dim,A

3.65(.144)



TNC Coaxial Connectors - Semi-Rigid Cable, Straight Jack

For Cable Crimp

Part Number

1T-201

1T-202

Cable Group

U85

U141

Dim,A

2.25(.089)

3.65(.144)

Back to Top


Flexible Cables

TNC Coaxial Connectors - Flexible Cable, Straight Plug

For Cable Clamp

Part Number

1T-111

Cable Group

316

Dim,A

3.2(.089)




TNC Coaxial Connectors - Flexible Cable, Straight Plug

For Cable Clamp

Part Number

1T-112

Cable Group

400

Dim,A

5.5(.144)




TNC Coaxial Connectors - Flexible Cable, Straight Jack

For Cable Crimp

Part Number

1T-211

1T-212

Cable Group

316

400

Dim,A

3.2(.089)

5.5(.144)



TNC Coaxial Connectors - Flexible Cable, Straight Plug

For Cable Crimp

Part Number

1T-114-00

Cable Group

214,LMR400



TNC Coaxial Connectors - Flexible Cable, Straight Plug

For Cable Crimp

Part Number

1T-124-00

Cable Group

RG214





TNC Coaxial Connectors - Flexible Cable, Bulkhead Jack

Part Number

1T-411

1T-412

Cable Group

316

400




Back to Top


Receptacles - 50 Ohm

TNC Coaxial Connectors - Receptacles 50Ohm, Panel Receptacle Jack 4 hole

Coaxial End

Part Number

1T-512-00




TNC Coaxial Connectors - Receptacles 50Ohm, Bulkhead Jack Receptacle

Solder End

Part Number

1T-601-00

Back to Top


Adaptors

TNC Coaxial Connectors - Plug to Plug Adaptors

Part Number

1T-801

Cable Group

Adaptors



TNC Coaxial Connectors - Jack to Jack Adaptors

Part Number

1T-802

Cable Group

Adaptors

Back to Top
