SMA Coaxial Connectors

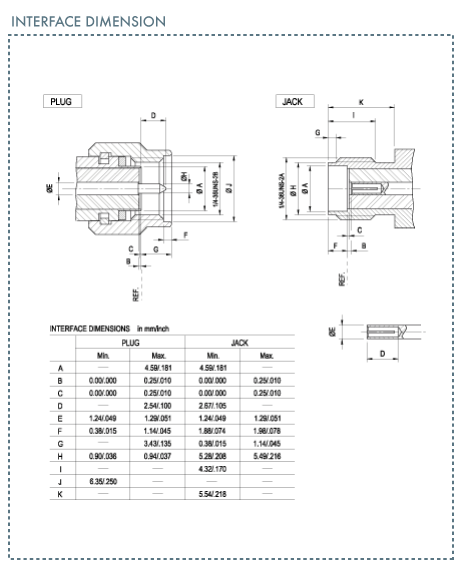

Technical Specifications | Interface Dimensions | Semi Rigid Cable | Flexible Cable
Receptacles 50 Ohm | PCB Connectors | Adaptors 50 OHm | Terminations
Download SMA Coaxial Connector Catalog

Our SMA connectors is a 50 ohm miniature connector with excellent high frequency capabilites when
used for telecommunications. It is most suitable in cases where space is limited and solid reliability is
requried.

It can be combined with a screw-on system and can use flexible and semi-rigid cables with two types
of cable connections: crimp and clamp

Standards: MIL-C-39012

RF Coaxial Connectors  - SMA Connectors


Technical Characteristics



Requirement

MIL-C-39012 Paragraph

Specification

ELECTRICAL DATA

Impedance



50 Ohm

Frequency Range

Semi-Rigid Cable: DC-18GHz
Flexible Cable: DC-12.4GHz

Contact Current

DC 2.0A max.

Working Voltage

Semi-Rigid Cable: 1000V
Flexible Cable: 750V

Contact Resistance

3-16

Center Contacts: 3.0m Ohm
Outer Contacts: 2.5m Ohm

Insulation Resistance

3-11

5000M Ohm min.

Insertion Loss

3-27

0.05 f (GHz) dB

VSWR

3-14

≤ 1.15 + 0.02f (GHz)

RF Leakage

3-26

-60dBm min. between
2~3GHz

MECHANICAL DATA

Coupling Nut Torque

12Ncm - 170Ncm

Coupling Nut Retention Force

3-25

≥ 200N

Life

3-15

500 matings

Contact Captivation

3-14

≥ 27N

ENVIRONMENTAL DATA

Temeprature Range



-65C ~ +125C

Corrosion Resistance

3-13

MIL-STD-202, Method
101, Condition B

Moisture Resistance

3-21

MIL-STD-202, Method 106

Thermal Shock

3-20

MIL-STD-202, Method 107,
Condition B

Vibration

3-18

MIL-STD-202, Method 204,
Condition D

Shock

3-19

MIL-STD-202, Method 213
Condition I

MATERIALS

Bodies

Brass or Stainless Steel

Female Contacts

Beryllium Copper

Insulators



PTFE Teflon

Gasket

Silicone Rubber

MATERIALS

Bodies



Gold Plated or Passivated

Center Contacts



Gold Plated


Semi-Rigid Cable

SMA Connectors - Semi-Rigid Cable, Straight Plug

Cable Solder

Part Number

1S-101

1S-102

Cable Group

U85

U141

Dim,A

2,25(.089)

3,65(.144)

SMA Connectors - Semi-Rigid Cable, Right Angle Plug

Cable Solder

Part Number

1S-301

1S-302

Cable Group

U85

U141

Dim,A

2,25(.089)

3,65(.144)

SMA Connectors - Semi-Rigid Cable, Straight Jack

Cable Solder

Part Number

1S-201

1S-202

Cable Group

U85

U141

Dim,A

2,25(.089)

3,65(.144)

SMA Connectors - Semi-Rigid Cable, Bulkhead Jack

Cable Solder

Part Number

1S-401-00

1S-402-00

Cable Group

U85

U141



Part Number

1S-401-01

1S-402-01

Cable Group

U85

U141

SMA Connectors - Semi-Rigid Cable, Panel Jack 4 Hole

Cable Solder

Part Number

1S-403

1S-404

Cable Group

U85

U141

Dim,A

2.25(.089)

3.65(.144)

SMA Connectors - Semi-Rigid Cable, Panel Jack 2 Hole

Cable Solder

Part Number

1S-405

1S-406

Cable Group

U85

U141

Dim,A

2.25(.089)

3.65(.144)

Back to Top


Flexible Cables

SMA Connectors - Flexible Cable, Straight Plug

Cable Solder

Part Number

1S-111

1S-112

Cable Group

316

400

Dim,A

3.2(.089)

5.5(.144)

SMA Connectors - Flexible Cable, Right Angle Plug

Cable Solder

Part Number

1S-311

1S-312

Cable Group

316

400

Dim,A

3.2(.089)

5.5(.144)

SMA Connectors - Flexible Cable, Straight Jack

Cable Solder

Part Number

1S-211

1S-212

Cable Group

316

400

Dim,A

3.2(.089)

5.5(.144)

SMA Connectors - Flexible Cable, Bulkhead Jack

Cable Solder

Part Number

1S-411-00

1S-412-00

Cable Group

316

400



Part Number

1S-411-01

1S-412-02

Cable Group

316

400

SMA Connectors - Flexible Cable, Panel Jack 4 Hole

Cable Solder

Part Number

1S-413

1S-414

Cable Group

316

400

Dim,A

3.2(.089)

5.5(.144)

SMA Connectors - Flexible Cable, Panel jack 2 Hole

Cable Solder

Part Number

1S-415

1S-416

Cable Group

316

400

Dim,A

3.2(.089)

5.5(.144)

Back to Top


Receptacles- 50 Ohm

SMA Connectors - Receptacle 50Ohm, Panel Receptacle Jack 4 Hole

Stripline Launchers

Part Number

1S-501

Cable Group

Receptacle



SMA Connectors - Receptacle 50Ohm, Panel Receptacle Jack 2 Hole

Stripline Launchers

Part Number

1S-502

Cable Group

Receptacle



SMA Connectors - Receptacle 50Ohm, Panel Receptacle Jack 2 Hole

Stripline Launchers

Part Number

1S-503

Cable Group

Receptacle



SMA Connectors - Receptacle 50Ohm, Panel Receptacle Jack 2 Hole

Coaxial End

Part Number

1S-504

Cable Group

Receptacle



SMA Connectors - Receptacle 50Ohm, Panel Receptacle Jack 4 Hole

Coaxial End

Part Number

1S-505

Cable Group

Receptacle

SMA Connectors - Receptacle 50Ohm, Panel Receptacle Plug 2 Hole

Solder End

Part Number

1S-506

Cable Group

Receptacle



SMA Connectors - Receptacle 50Ohm, Panel Receptacle Plug 4 Hole

Solder End

Part Number

1S-507

Cable Group

Receptacle





SMA Connectors - Receptacle 50Ohm, Panel Receptacle Plug 2 Hole

Solder End

Part Number

1S-508

Cable Group

Receptacle



SMA Connectors - Receptacle 50Ohm, Panel Receptacle Jack 4 Hole

Solder End

Part Number

1S-509

Cable Group

Receptacle

SMA Connectors - Receptacle 50Ohm, Bulkhead Receptacle

Sold End

Part Number

1S-601

Cable Group

Receptacle





SMA Connectors - Receptacle 50Ohm, Bulkhead Receptacle Jack

Coaxial End

Part Number

1S-602-00




Part Number

1S-602-01



With Seal

Part Number

1S-602-02

Cable Group

Receptacle

SMA Connectors - Receptacle 50Ohm, Bulkhead Receptacle Plug

Sold End

Part Number

1S-605-00




SMA Connectors - Receptacle 50Ohm, Right Angle Receptacle Plug 4 Hole

Sold End

Part Number

1S-701

Cable Group

Receptacle



SMA Connectors - Receptacle 50Ohm, Right Angle Receptacle Jack 4 Hole

Sold End

Part Number

1S-702

Cable Group

Receptacle





SMA Connectors - Receptacle 50Ohm, Right Angle Receptacle Jack 2 Hole

Sold End

Part Number

1S-703

Cable Group

Receptacle



Back to Top


PCB Connectors

SMA Connectors - PCB Connector, Straight PCB Jack




Part Number

1S-521-00


Part Number

1S-521-01



SMA Connectors - PCB Connector, StraightSide  PCB Mount Jack




Part Number

1S-522-00



Part Number

1S-522-01



SMA Connectors - PCB Connector, Straight PCB Plug

Part Number

1S-541-01



SMA Connectors - PCB Connector, Right Angle PCB Jack




Part Number

1S-710-00





Part Number

1S-710-01





SMA Connectors - PCB Connector, Right Angle Bulkhead PCB Jack

Part Number

1S-711-00





Back to Top


Adaptors - 50 Ohm



SMA Connectors - Adoptors, Plug to Plug

Part Number

1S-801

Cable Group

Adaptors



SMA Connectors - Adoptors, Plug to Jack

Part Number

1S-802

Cable Group

Adaptors



SMA Connectors - Adoptors, Sanp-On Plug to Jack

Part Number

1S-802-02

Cable Group

Adaptors



SMA Connectors - Adoptors, Jack to Jack

Part Number

1S-803

Cable Group

Adaptors



SMA Connectors - Adoptors, Jack to Bulkhead Jack

With Seal

Part Number

1S-804-00


SMA Connectors - Adoptors, Jack to Bulkhead Jack

With Seal

Part Number

1S-804-01



SMA Connectors - Adoptors, Jack to Bulkhead Jack

With Seal

Part Number

1S-804-02





SMA Connectors - Adoptors, Plug to Bulkhead Jack

With Seal

Part Number

1S-802-03







SMA Connectors - Adoptors, Right Angle Plug to Jack

Part Number

1S-805

Cable Group

Adaptors



SMA Connectors - Adoptors, Right Angle Plug to Jack

Part Number

1S-806

Cable Group

Adaptors



SMA Connectors - Adoptors, T Adaptor 3 Plug

Part Number

1S-881

Cable Group

Adaptors



SMA Connectors - Adoptors, T Adaptor 1 plug 2 Jacks

Part Number

1S-882

Cable Group

Adaptors



SMA Connectors - Adoptors, T Adaptor 3 Plugs

Part Number

1S-883

Cable Group

Adaptors




Terminations



SMA Connectors - Terminations

Part Number

1S-001

Cable Group

Short Circuit Cap

Impedance

50 Ohm
