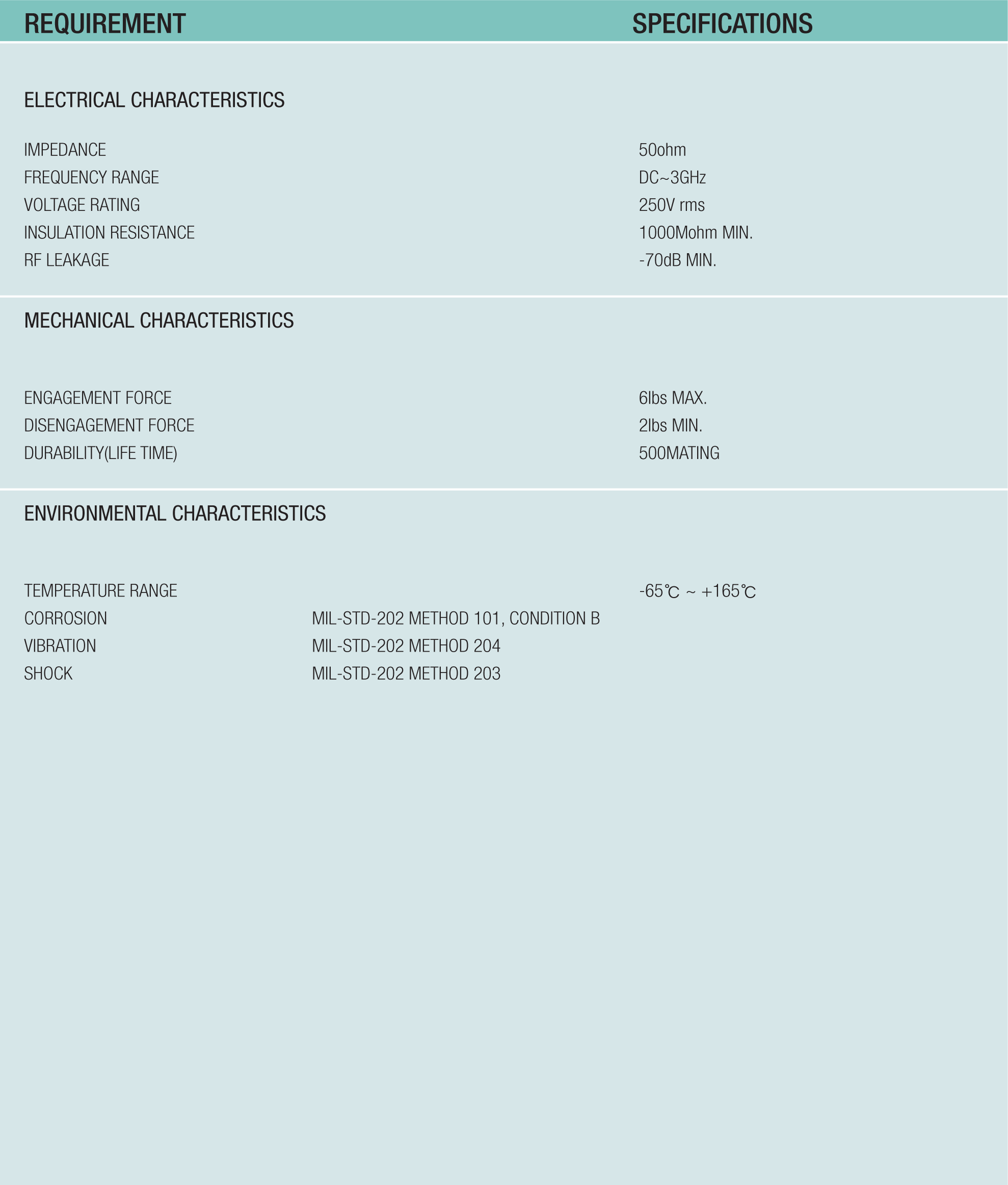

Interface Dimensions | Technical Specifications | SSMB Connectors | Download SSMB Coaxial Connector Catalog
SSMB series provides excellent electrical performance in a microminiature footprint.
While the snap-on mating interface allows quick installation and dense packaging.
The excellent electrical performance of the SSMB series allows it to be used in many applications
as an alternative to larger connectors like SMA.
