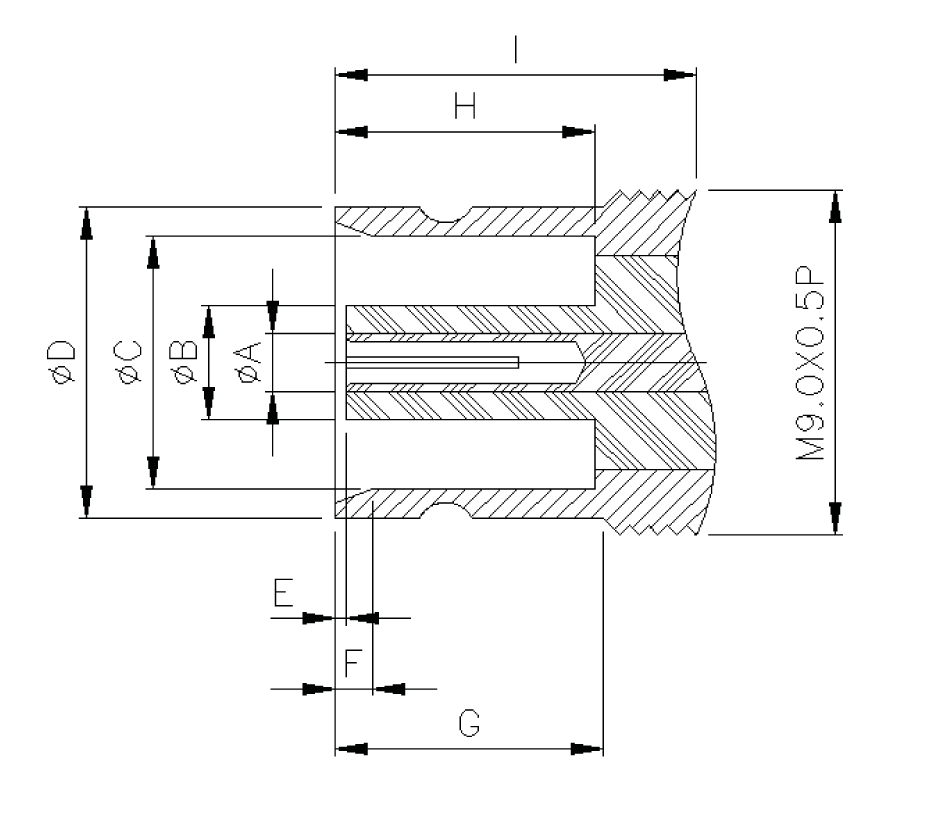

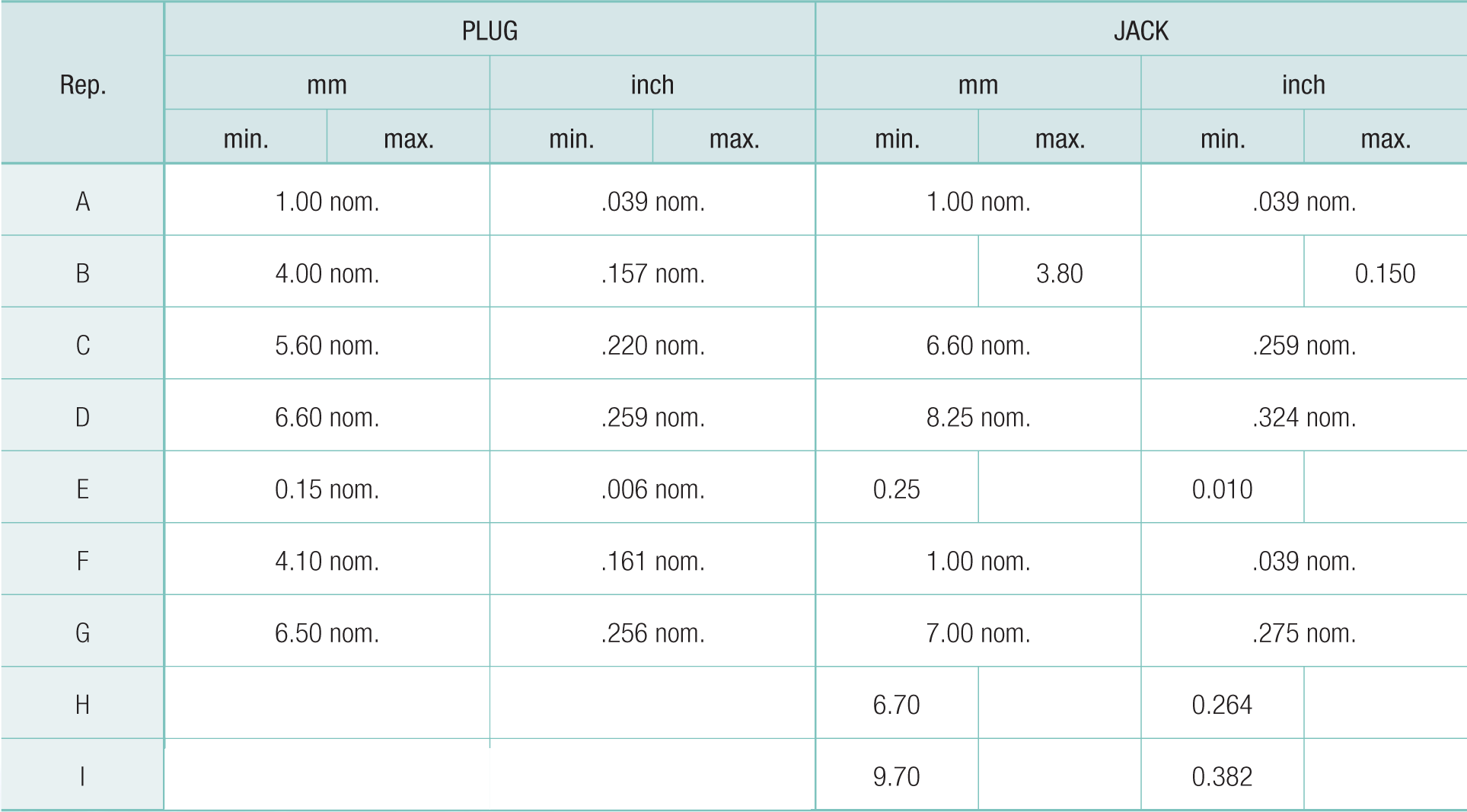

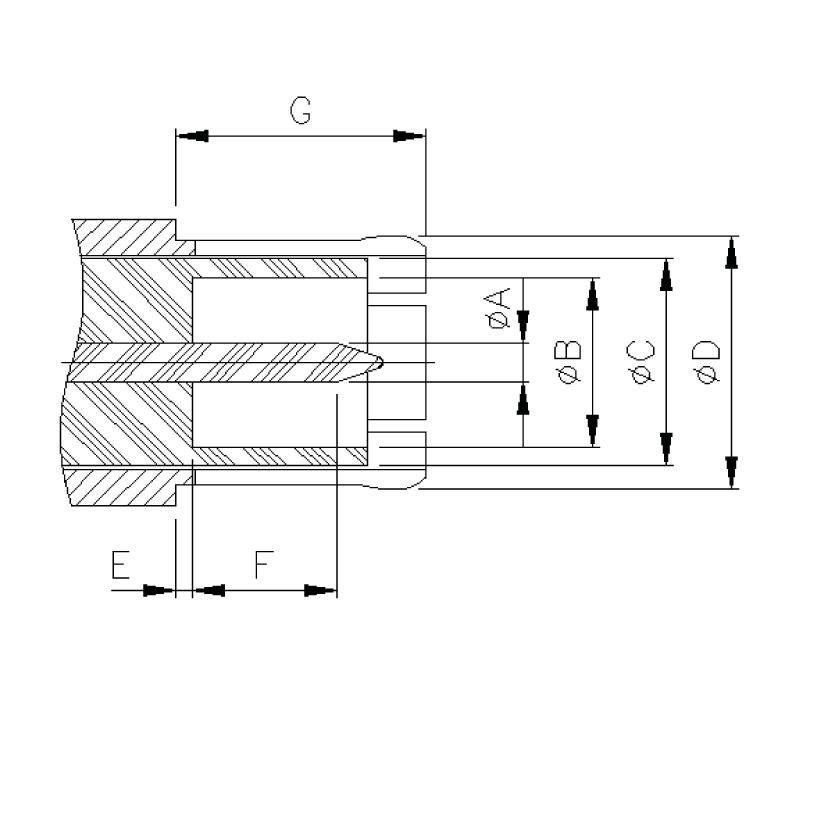

Interface Dimensions | Technical Specifications | DIN 1.6/5.6 Connectors | Download DIN 1.6/5.6 Connector Catalog
The (1.6/5.6) series are through construction and materials especially suited for instruments,
where highest reliability is required, for instance in telecommunication systems.
Three different devices are available:screw-on, slide-on coupling where as the sockets are of same design
for all systems.
- DIN 47295 (1.6/5.6)
