N
Coaxial Connectors
|
|
Technical Specifications |

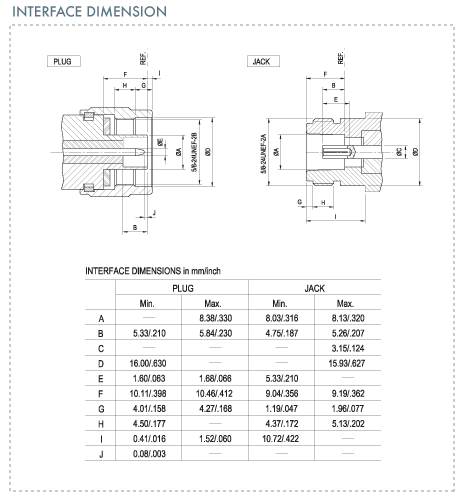

Interface
Dimensions | Semi Rigid Cables | Flexible
Cables
RF-Super Flexible | Receptacles | Adaptors
50 Ohm
Our N Coaxial Connectors are available in both 75 Ohm and 50 Ohm impedances.
The highest possible frequency
is 18GHz according to the connector type.
Screw type coupling mechanisms guarantee firm and reliable connections.
In addition, clamp, crimp, and semi-rigid types are available.
Standards:
MIL-C-39012
|
|
Technical
Characteristics
|
|
|
Requirement
|
MIL-C-39012
Paragraph
|
Specification
|
|
ELECTRICAL
DATA
|
|
Impedance
|
|
50 Ohm
|
|
Frequency Range
|
|
DC to 4GHz
|
|
Contact Current
|
|
DC 1.5A max.
|
|
Voltage Rating
|
|
250V rms
|
|
Contact Resistance
|
3-16
|
Center Contacts: 3.0m
Ohm
Outer Contacts: 0.5m Ohm
|
|
Insulation Resistance
|
3-11
|
1000M Ohm min
|
|
Insertion Loss
|
3-27
|
0.6 dB max
|
|
VSWR
|
3-14
|
Straight 1.3 + 0.04f
(GHz)
Right Angle 1.4 + 0.06f (GHz)
|
|
RF Leakage
|
3-26
|
-55dBm min between 2~3GHz
|
|
MECHANICAL
DATA
|
|
Engagement Force
|
|
max. 63N
|
|
Mating Torque
|
|
Not applicable
|
|
Life
|
|
500 matings
|
|
Contact Captivation
|
|
max 15N
|
|
ENVIRONMENTAL
DATA
|
|
Temperature Range
|
|
-65C ~ +125C
|
|
Corrosion Resistance
|
|
MIL-STD-202, Method
101, Condition B
|
|
Moisture Resistance
|
|
MIL -STD-202, Method
106
|
|
Thermal Shock
|
|
MIL -STD-202, Method
107
Condition B
|
|
Vibration
|
|
MIL -STD-202, Method
204
Condition D
|
|
MATERIALS
|
|
Bodies and Male Contacts
|
|
Brass
|
|
Female Contacts
|
|
Berylium Copper
|
|
Insulators
|
|
PTFE Teflon
|
|
PLATINGS
|
|
|
|
Bodies
|
|
|
|
Center Contacts
|
|
Gold Plated
|
|
Semi-Rigid Cables
|
|
|
|
Part
Number
|
1N-101
|
1N-102
|
|
Cable
Group
|
U85
|
U141
|
|
Dim,A
|
2.25(.089)
|
3.65(.144)
|
|
|
|
|
Part
Number
|
1N-301
|
1N-302
|
|
Cable
Group
|
U85
|
U141
|
|
Dim,A
|
2.25(.089)
|
3.65(.144)
|
|
|
|
|
Part
Number
|
1N-201
|
1N-202
|
|
Cable
Group
|
U85
|
U141
|
|
Dim,A
|
2.25(.089)
|
3.65(.144)
|
|
|
|
|
Part
Number
|
1N-401
|
1N-402
|
|
Cable
Group
|
U85
|
U141
|
|
|
|
|
Part
Number
|
1N-403
|
1N-404
|
|
Cable
Group
|
U85
|
U141
|
|
Dim,A
|
2.25(.089)
|
3.65(.144)
|
|
|
|
|
Part
Number
|
1N-111
|
1N-112
|
|
Cable
Group
|
316
|
400
|
Back to Top
|
Flexible
Cables
|
|
|
|
Part
Number
|
1N-114-00
|
|
Cable
Group
|
213,
214
|
|
Part
Number
|
1N-114-00
|
|
Cable
Group
|
LMR400
|
|
|
|
|
Part
Number
|
1N-311
|
1N-312
|
|
Cable
Group
|
316
|
400
|
|
Dim,A
|
3.2(.089)
|
5.5(.144)
|
|
|
|
|
Part
Number
|
1N-314-00
|
|
Cable
Group
|
213,
214
|
|
|
|
|
Part
Number
|
1N-211
|
1N-212
|
|
Cable
Group
|
316
|
400
|
|
Dim,A
|
3.2(.089)
|
5.5(.144)
|
|
|
|
|
Part
Number
|
1N-214
|
1N-214-04
|
|
Cable
Group
|
213,
214
|
LMR400
|
|
|
|
|
Part
Number
|
1N-211
|
1N-212
|
|
Cable
Group
|
316
|
400
|
|
Dim,A
|
3.2(.089)
|
5.5(.144)
|
|
|
|
|
Part
Number
|
1N-122
|
|
Cable
Group
|
400
|
|
Dim,A
|
5.5(.144)
|
|
|
|
|
Part
Number
|
1N-124-00
|
|
Cable
Group
|
214
|
|
|
|
|
Part
Number
|
1N-122
|
|
Cable
Group
|
400
|
|
Dim,A
|
5.5(.144)
|
Back to Top
|
RF- Super Flexible Cables
|
|
|
|
Part
Number
|
1N-125-00
|
|
Cable
Group
|
1/2"
|
|
|
|
|
Part
Number
|
1N-225-00
|
|
Cable
Group
|
1/2"
|
Back to Top
|
Receptacles
|
|
|
|
Part
Number
|
1N-512
|
|
Cable
Group
|
Receptacle
|
|
Dim,A,B
|
Order
|
|
|
|
|
Part
Number
|
1N-513
|
|
Cable
Group
|
Receptacle
|
|
Dim,A,B
|
Order
|
|
|
|
Back to Top
|
|
|
|
Part
Number
|
1N-511
|
|
Cable
Group
|
Receptacle
|
|
Dim,A,B
|
Order
|
|
|
|
|
Part
Number
|
1N-601-X-X
|
|
Cable
Group
|
Receptacle
|
|
|
|
|
Part
Number
|
1N-602-X-X
|
|
Cable
Group
|
Receptacle
|
Back to Top
|
Adaptors
50 Ohm
|
|
|
|
Part
Number
|
1N-801
|
|
Cable
Group
|
Adaptors
|
|
|
|
|
Part
Number
|
1N-802
|
|
Cable
Group
|
Adaptors
|
|
|
|
|
Part
Number
|
1N-811
|
|
Cable
Group
|
Adaptors
|
|
|
|
|
Part
Number
|
1N-881
|
|
Cable
Group
|
Adaptors
|
|
|
|
|
Part
Number
|
1N-882
|
|
Cable
Group
|
Adaptors
|
|
|
|
|
Part
Number
|
1N-883
|
|
Cable
Group
|
Adaptors
|
Back to Top
|
