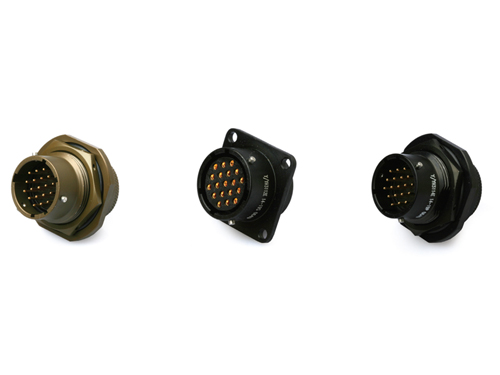

CIRCULAR CONNECTOR
|
|
| |
 MIL-DTL-26482 I
|
|
This connector was originally designed to be used for military equipment, but is currently used in various industrial fields. Especially, this is used in various medical equipment, electric cars, industrial machine tools, robots, etc., industrial products requiring high reliability, at a low cost. The connector is joined in a screw type, and its wires and contacts are connected in a soldering type. The class ¡°A¡± and ¡°B¡± types are non-waterproof products, the class ¡°E¡±, ¡°F¡± and ¡°R¡± types have waterproof wire parts on the rear side of the connector including insulator packing, and the class ¡°F¡± and ¡°R¡± types of the IS3106/IS3108 plug connector are waterproof on the front of the connector including O-rings. The dimensions related to mutually joining these connectors and the contact arrangement coincide with the MIL-DTL-5015 standard.
|
 |
|
|
 Ordering Information
|
 Military Nomenclature |
|
 |
|
|
|
° MS Number Shell Style
MS3110 - Wall Mounting Receptacle
MS3111 - Cable Connecting Plug
MS3112 - Box Mounting Receptacle (Class E Only)
MS3114 - Jam Nut Receptacle
MS3116 - Straight Plug
MS3119 - Thru-Bulkhead Receptacle (Class E Only)
° Class
A - General Duty (not MS Approved)
E - Grommet seal exept on 3112 (MS Specification)
F - Grommet seal with strain relief (MS Specification)
P - Potted (MS Specification)
|
° Shell Size
8,10, 12, 14, 16, 18, 20, 22, 24
° Contact Arrangement
MIL-STD-1669
° Contact Style
P - Pin
S - Socket
° Alternate Insert Positions
N (Normal), W, X, Y, Z(MIL-STD-1669)
|
|
|
| ISOTEC Nomenclature |
|
 |
|
|
|
° IS Number Shell Style
IS3110 - Wall Mounting Receptacle
IS3111 - Cable Connecting Plug
IS3112 - Box Mounting Receptacle (Class E Only)
IS3114 - Jam Nut Receptacle
IS3116 - Straigh t Plug
IS3119 - Thru-Bulkhead Receptacle (Class E Only)
° Class
A - General Duty (not MS Approved)
E - Grommet seal exept on 3112 (MS Specification)
F - Grommet seal with strain relief (MS Specification)
P - Potted (MS Specification)
° Shell Size
8,10, 12, 14, 16, 18, 20, 22, 24
° Contact Arrangement
MIL-STD-1669 - see page 16
|
° Contact Style
P - Pin
S - Socket
° Alternate Insert Position
N (Normal), W, X, Y, Z(MIL-STD-1669)
° Finish
BLANK - Conductive Olive Drab Chromate Over Cadmium or Zinc plate.
01- Black Anodize
02- Electroless Nickel plate
03- Olive Drab Cadmium
04- Zinc Cobalt Plate
|
|
|
| Mating Face View |
|
 |
| |
| Technical Data |
| Standard Materials and Finishes |
 |
| Electrical Data |
|
|
| |
